At the critical decision stage of robotic deployment, imprecise cable management often creates hidden vulnerabilities on the factory floor. Many automation engineers discover too late how poor routing becomes a leading cause of unexpected downtime and severe cable fatigue. Proper measurement demands much more than just checking static dimensions on a basic spec sheet. You must carefully account for dynamic operational tolerances, extreme articulation limits, and complex environmental stressors. A minor miscalculation can quickly derail an otherwise perfect robotic integration.
In this guide, we explore exact methods for sizing protective sleeves across complex multi-axis robotic systems. We outline how accurate measurements directly inform the successful specification of high-reliability protection systems. You will learn how to calculate ideal diameters, assess dynamic length, and map motion clearances. By mastering these variables, you protect your valuable automation investments and ensure continuous, unrestricted mechanical performance.
Sizing determines lifespan: Improper diameter or length calculations lead to friction, binding, or catastrophic cable failure.
Dynamic motion dictates length: True measurement must account for maximum axis extension, torsion, and required service loops.
Customization reduces risk: A custom robot arm cable cover solves specific environmental and kinematic challenges that off-the-shelf sleeves cannot accommodate.
Testing validates design: Rigorous robot cover design and testing ensures that measured tolerances hold up to thousands of flex cycles.
Imprecise tolerances carry a massive business impact. When you deploy a tight-fitting protective sleeve, it constantly squeezes the internal hoses. This extreme friction generates heat. It quickly degrades the outer jackets of your internal wiring. Conversely, excessively loose covers create dangerous snag hazards. Loose fabric easily catches on nearby safety fencing or raw materials. This increases the risk of violent collisions during rapid automated movements.
You must apply the "Less is More" principle to robotic cable management. Every ounce of extra material adds unnecessary weight. Streamlining this bulk through highly accurate measurement directly reduces payload stress. It prevents the motors from overworking. Keeping the profile slim ensures the robot maintains its maximum rated speed and payload capacity.
What does a successful measurement specification look like? We define success through three strict criteria. First, the setup must exhibit zero internal cable binding during high-speed operation. Second, it must allow unhindered multi-axis movement from the base to the wrist. Finally, the installation must comply fully with industry safety standards, such as ISO 10218-2, minimizing external collision risks.

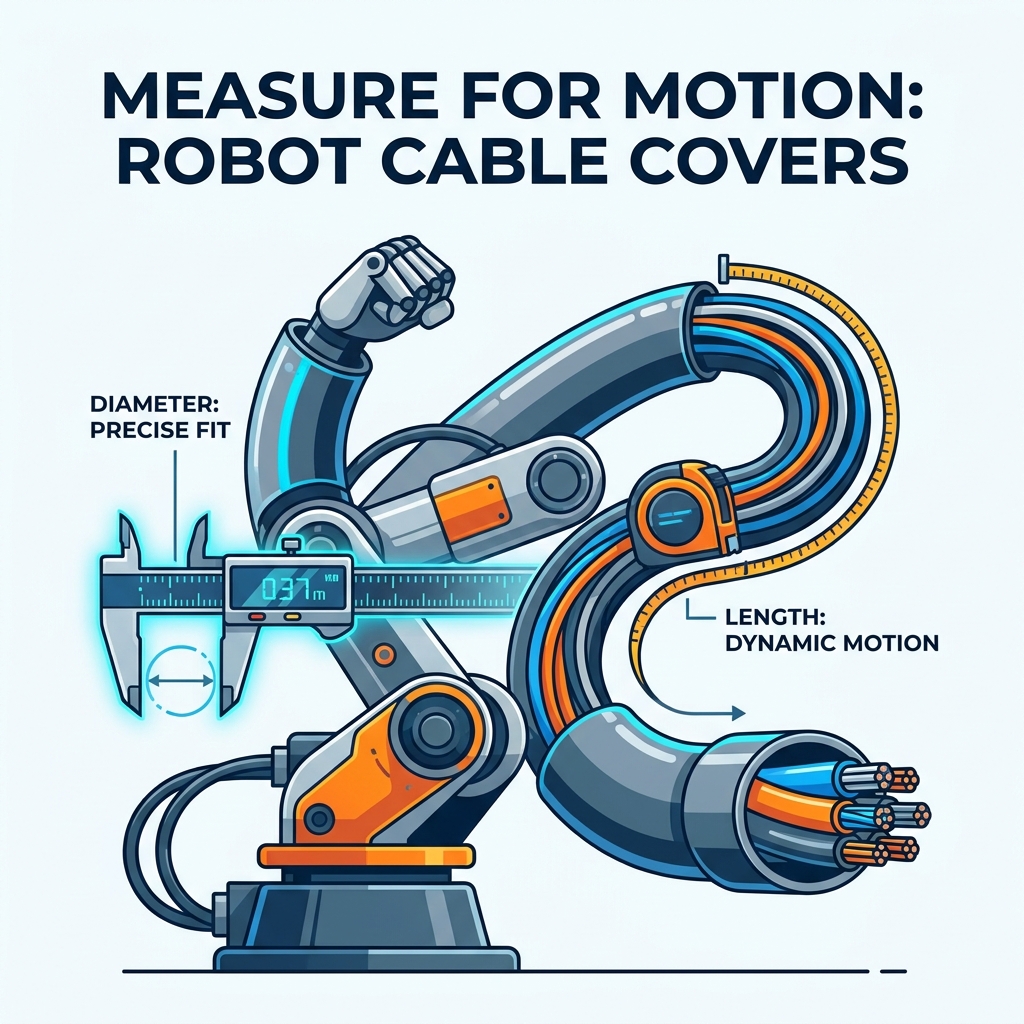

Calculating the correct diameter requires assessing the entire bundle. You cannot measure cables individually and simply add their widths. Instead, follow a structured process to determine the ideal inner diameter (ID).
Group all required cables, pneumatic hoses, and sensor lines tightly together.
Use a digital caliper to measure the aggregate Outer Diameter (OD) at the widest point.
Identify any bulky connectors or thick splices needing to pass through the sleeve.
Apply the standard clearance rule. Add 10% to 20% to your largest OD measurement.
This calculated buffer becomes your minimum required Inner Diameter. The extra space prevents severe internal friction during repetitive flexing. It allows individual wires to slide past one another naturally.
Measuring sleeve length while the robot sits in its resting home position is a common mistake. You must determine the length under extreme dynamic load. First, jog the robotic arm into its absolute most extended posture. Measure the distance along the routing path in this fully stretched state. This gives you your baseline structural length.
Next, you must calculate the required service loop length. Service loops are intentional slack sections. They accommodate severe wrist articulation and end-of-arm tooling (EOAT) rotation. If your EOAT spins 360 degrees, a tight cable will instantly snap. Add sufficient buffer length to support these extreme rotational limits without adding droop.
Clearance mapping protects the system from external crushing forces. You must identify specific pinch points across all six axes of movement. Watch the machine move slowly through its entire operational program. Look for joint areas where the casting might pinch the outer jacket.
You also need to measure the maximum twist angle. Torsion stresses materials differently than simple bending. Calculate the exact degrees of rotation the bundle will endure. This data ensures you select a cover material capable of handling severe torsion without choking the internal pathways.
Standard tubular sleeves severely limit operational flexibility. Off-the-shelf options usually offer a single continuous diameter. They often fail in complex, high-articulation environments. For example, collaborative robots require highly sensitive routing to avoid triggering built-in force sensors. Heavy industrial welders require massive articulation buffers. Standard sleeves simply bunch up, catch on joints, and cause sudden machine stops.
Evaluating a tailored approach reveals significant operational advantages. Specifying a custom robot arm cable cover allows engineers to dictate variable diameters along the same length. You can request wider sections near the wrist and narrower sections near the base. You can specify integrated mounting points to eliminate zip ties. Furthermore, customization permits precise material selection. You might choose Kevlar for spark resistance or PTFE for strict cleanroom standards.
Features to Operational Outcomes Matrix
Custom Feature | Operational Outcome | Ideal Industrial Application |
|---|---|---|
Zipper or Velcro Closures | Rapid access for internal wire maintenance. | Automotive assembly lines. |
Variable Diameter Sections | Prevents bunching at critical rotation joints. | High-speed packaging robotics. |
Segmented Protection Zones | Allows localized replacement of worn areas. | Heavy MIG/TIG welding operations. |
Integrated Mounting Grommets | Eliminates slipping and zip-tie crushing. | Cleanroom and pharmaceutical manufacturing. |
Theoretical measurements mean very little until they survive physical validation. You must validate your initial data through advanced CAD modeling first. Kinematic software simulates the arm's movement and predicts how the sleeve will behave. After digital validation, physical prototype runs become mandatory. Prototyping reveals hidden stresses you cannot see on a spreadsheet.
Several key dimensions define rigorous robot cover design and testing. The process involves multiple harsh stress simulations.
Abrasion testing: Engineers simulate continuous rubbing against rough factory surfaces. This validates whether your calculated diameter prevents internal and external jacket wear.
Torsion and flex cycle testing: Testing machines twist the prototype repeatedly. This proves your length and clearance measurements will hold up over one million cycles without degradation.
Tensile pull testing: This verifies the strength of zippers and integrated mounting brackets under sudden load spikes.
You must maintain transparent assumptions during this phase. Acknowledge that pristine lab testing environments differ vastly from gritty real-world factory floors. Labs rarely replicate the exact mix of ambient dust, machine oil, and vibration. Because of this disparity, emphasize a 5% to 10% safety margin in your final measurement specs.
Rollout realities frequently ruin accurate engineering work. The most common installation failure involves over-tightening plastic zip ties. When technicians cinch ties too tightly around the jacket, they nullify perfect clearance measurements. The tension chokes internal wires and forces them to break during rotation. Improper mounting bracket placement also distorts the carefully calculated slack, leading to immediate binding.
Environmental factors alter physical dimensions post-installation. Extreme thermal expansion causes synthetic fabrics to stretch and droop in foundries. Fluid absorption presents another serious threat. When protective sleeves absorb CNC coolants or hydraulic oils, they swell. This swelling consumes your calculated internal clearance and adds massive unexpected weight to the robotic payload.
We highly recommend standard operating procedure (SOP) integration. You should document the exact measurement methodology and installation steps. Take clear photographs of the proper routing paths. Outline exact torque specs for mounting hardware. This documentation ensures high consistency during all future maintenance shifts or emergency replacement cycles.
A procurement engineer must hand over highly accurate data to the manufacturer. Missing information leads to poor manufacturing outcomes. Ensure your final quotation request includes:
The calculated maximum inner diameter requirement.
The total dynamic length at full robotic extension.
The exact length and placement of needed service loops.
A detailed list of ambient hazards (chemicals, sparks, extreme temperatures).
The precise make, model, and payload rating of the robot.
Evaluating vendor capability requires careful scrutiny. Look for a manufacturing partner offering robust engineering support. They should willingly provide historical testing data for their materials. Assess their prototyping speed; rapid turnarounds keep your deployment on schedule. Furthermore, demand clear material compliance documentation to satisfy local safety regulators.
Your immediate next-step actions dictate your integration success. Audit your current cable routing paths today. Identify any areas showing premature wear or severe tension. Finalize your internal measurement sheet using the techniques outlined above. Finally, request a technical consultation from a specialized manufacturer to verify your findings.
Accurate measurement forms the absolute foundation of reliable automated manufacturing. When you meticulously calculate diameters, dynamic lengths, and motion clearances, you eliminate the root causes of unexpected mechanical failure. Ignoring these variables practically guarantees catastrophic wire binding and costly operational stops. Proper sizing ensures multi-axis freedom and protects your vital power pathways from severe environmental degradation.
Precision sizing transforms a vulnerable machine into a highly resilient asset. Investing the required engineering time into exact measurement and custom specification directly yields long-term operational efficiency. It drastically extends equipment lifespan. By eliminating friction and accommodating high-speed torsion, your robots perform continuously at their maximum designed potential.
A: Generally, you should add a 10% to 15% length buffer for standard service loops. This accommodates complex wrist articulation and prevents binding during maximum extension. However, exact requirements rely heavily on your specific end-of-arm tooling (EOAT). Bulky grippers or high-rotation welders often require larger loops to ensure unrestricted movement.
A: Always measure your cables as an aggregate bundle at its absolute widest point. You must account for the thickest sections, including overlapping hoses and bulky connectors. If connectors must pass through the sleeve during installation, use their maximum width as your baseline to determine the required internal diameter.
A: You should inspect and evaluate protective covers during quarterly preventative maintenance cycles. Replace them every 12 to 18 months, depending on the severity of the operating environment. Look for visual wear indicators like fraying, jacket discoloration, or loss of elasticity. If you change tooling or routing, immediately re-measure to ensure proper fit.
