Continuous multi-axis motion pushes industrial equipment to its absolute physical limits. Without proper protection, this relentless movement inevitably leads to severe cable fatigue. You will also experience rapid jacket abrasion across your manufacturing floor. Ultimately, you face catastrophic line downtime when unmanaged lines fail unexpectedly.
Standard static routing completely fails in three-dimensional dynamic environments. As articulated joints rotate from Axis 1 through Axis 6, they subject internal wiring to extreme twisting. They also pull delicate communication wires violently during rapid trajectory changes. Unprotected lines cannot survive these harsh operational realities for very long.
A specialized robot arm cable cover serves as a highly critical mechanical component. It acts as the primary defense for your automated cells. In this comprehensive guide, you will learn how these engineered systems dictate flex life. We will explore the hidden costs of unprotected motion. You will discover the engineering mechanics of cable defense. Finally, we outline best practices for routing installation.

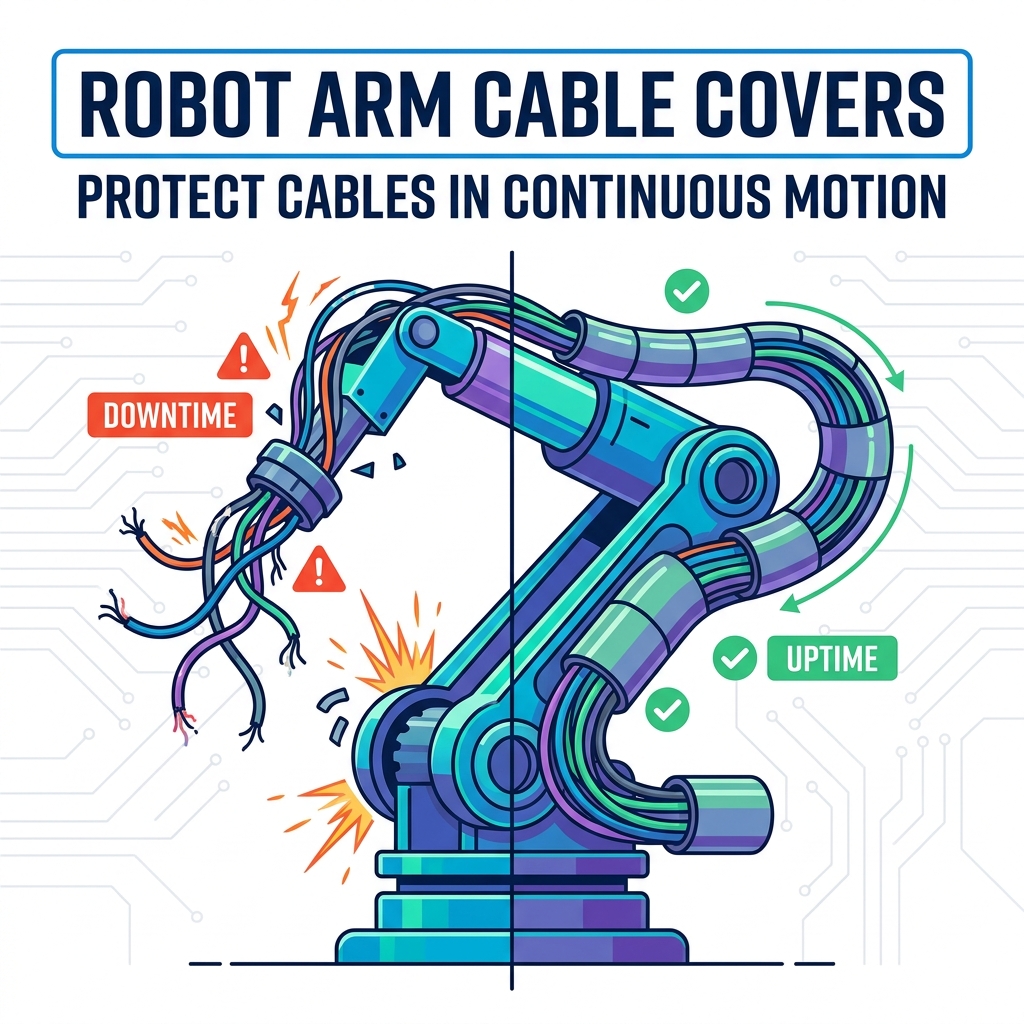

Unmanaged continuous motion causes corkscrewing, snagging, and internal conductor failure, driving hidden maintenance costs.
An effective robot arm cable cover limits mechanical stress by enforcing minimum bend radii and absorbing torsional forces.
Adopting a "less is more" routing philosophy prevents over-constraining, allowing cables the necessary freedom to move without interfering with the robot's work envelope.
Vendor evaluation should prioritize validated flex-life testing, modularity for fast retrofits, and specific environmental compliance (e.g., UL/CSA, chemical resistance).
Unexpected downtime cascades violently through your entire manufacturing facility. When a robotic cell halts due to a severed wire, production stops immediately. Maintenance teams must drop planned work to address the emergency. Replacement labor consumes highly valuable engineering hours. You also waste expensive raw materials. Scrapped parts pile up quickly as communication faults interrupt precise machining cycles. Missing a single safety signal stops the entire line instantly. You lose substantial revenue every minute the system stays offline. Reactive maintenance forces you into expensive overnight parts shipping. It also ruins weekly production schedules. Protecting your lines proactively prevents these massive financial leaks. Every hour spent diagnosing a broken internal wire destroys your daily throughput goals. Automated systems only generate profit when they move consistently.
Three-dimensional motion introduces incredibly unique physical threats to your wiring. Industrial environments punish exposed components daily.
Corkscrewing and Torsion: Cables twist far beyond their engineered torsional limits. Copper conductors warp violently inside the casing. The wires eventually resemble a corkscrew. This permanently degrades electrical conductivity. Insulation layers split open under the extreme rotational stress.
Jacket Abrasion: Constant friction grinds wires against the bare metal casting. Surrounding tooling slowly wears away the protective outer insulation. Bare wires eventually touch grounded metal. This causes immediate short circuits. It also introduces severe safety hazards for nearby operators.
Dynamic Interference (Snagging): Unsecured lines catch easily on external fixtures. High-speed trajectory changes snap snagged wires instantly. They can also rip connectors directly out of their sockets. This destroys both the wire and the expensive servo motor port. It often damages the robotic arm housing itself.
A well-designed cover restricts movement to safe physical planes. It allows necessary motion but prevents destructive over-extension. Multi-axis energy chains absorb radical twists safely. Specialized umbilical sleeves allow necessary axial rotation. They prevent damaging bends simultaneously. These covers keep the assembly within a designated spatial envelope.
They guide the lines along the natural mechanical curve.
They limit the twisting angle per linear foot.
They prevent wires from drooping into the active work zone.
They distribute mechanical stress evenly across the entire length.
They prevent localized pinching near the rigid connector joints.
They essentially act as a flexible exoskeleton. This exoskeleton absorbs the kinetic energy instead of the delicate internal wires. It channels the kinetic force into durable outer polymers.
Physical covers act as firm mechanical stops. They prevent internal lines from kinking during acute articulation. Wire manufacturers specify strict bend limits for every product. Bending a wire too tightly stretches the outer jacket. It simultaneously crushes the inner insulation layers. A robust cover ensures the assembly never exceeds these critical limits. It physically blocks the bundle from bending past a predetermined angle. This preserves the delicate internal copper strands. It guarantees consistent signal transmission during complex movements.
Many facilities fall into a very common implementation trap. Engineers tightly bundle every single wire inside the cover. Over-constraining these components actually accelerates wear rapidly. Internal clearance remains absolutely mandatory for long-term survival. Filling rules dictate you must leave empty space inside the conduit. We recommend leaving at least twenty percent of the internal space entirely empty. This allows individual wires to glide independently as the machine moves. Wires must slide past each other smoothly. Tying them together tightly forces them to stretch and tear. Less restriction inside the tube yields significantly more flex life.
Cable Cover Material Application Guide
Material Type | Heat Resistance | Chemical Resistance | Flexibility Rating | Ideal Application |
|---|---|---|---|---|
Polyurethane | Moderate | High | Excellent | General assembly, Pick-and-place |
Polyamides | Very High | Moderate | Good | Welding, Heavy fabrication |
PTFE Blends | Extreme | Extreme | Moderate | Harsh chemical washdowns |
Your specific application environment dictates the necessary jacket material. You cannot use a universal solution for every process. Welding spatter requires highly heat-resistant formulations. Slag will quickly melt through standard plastics. Cutting fluids demand chemical-resistant polymers. Oils degrade inferior rubber very rapidly. Assess your cell environment carefully before selecting a product. Heavy impact zones need ruggedized outer shells. Cleanroom applications require materials avoiding particle shedding.
Always demand comprehensive manufacturer testing data. Standardized torsion tests prove long-term reliability. Look for documented verification of millions of operational cycles. Avoid suppliers making unverified durability claims. You need concrete data demonstrating sustained performance. Reputable vendors test their products in simulated robotic cells. They bend and twist the assemblies until they fail completely. They then publish these exact failure thresholds. Reviewing this data prevents premature failures on your factory floor. You should ask for test parameters matching your specific robot models. Ensure the test accounts for your expected payload speeds. A cover surviving slow speeds might shred during high-speed operations.
Evaluate the overall design for Mean Time To Repair (MTTR). You should easily replace a single wire. You should never dismantle the entire dress pack for one broken wire. Zipper-style sleeves offer massive maintenance advantages here. Split-corrugated tubes also speed up repairs significantly. They unclip quickly for rapid access. Modular designs let technicians swap damaged sections in minutes. This dramatically reduces costly machine downtime. Always prioritize designs favoring quick tool-less entry. Time spent wrestling with complex clamps costs money. Technicians need systems they can service using standard hand tools quickly.
Verifying safety ratings protects your facility from severe liabilities. UL, CSA, and CE ratings matter heavily in industrial automation. Heavily regulated facilities require certified components strictly. Exported automated skids must meet stringent international compliance standards. Non-compliant plastics might release toxic fumes during a fire. They might also lack proper flame retardant properties. Always request official certification documents during the procurement phase. Your insurance providers often require these certifications. Operating uncertified equipment voids warranties on expensive robotic components. Do not risk your facility using unverified overseas components.
Use digital twin software before any physical deployment. CAD simulations map the exact physical envelope accurately. They predict potential interference zones extremely early. You can watch the virtual machine run its exact program. You will see exactly where the dress pack hits tooling. This prevents expensive routing mistakes on the factory floor. It saves days of trial-and-error adjustments during commissioning. Proper digital planning guarantees a smooth physical installation.
High-stress joints present severe routing challenges. The transition from Axis 3 to Axis 6 creates massive torsion. You must route lines carefully through these specific pivot points. Proper slack management prevents snapping during maximum extension. If you leave too much slack, the lines will snag. If you leave too little slack, the lines will tear. Engineers must measure these transition lengths perfectly. Using specialized rotary joints helps mitigate this intense twisting force. You must allow the bundle to twist slightly without bunching. Some systems use retraction mechanisms to pull slack back safely. These mechanical tensioners keep the bundle perfectly taut during complex maneuvers.
Anchor lines properly at the base and the tool end. Use engineered strain relief clamps everywhere. You must leave a defined service loop between anchor points. This loop absorbs aggressive movement effortlessly. It prevents the clamps from crushing the internal wires. Never overtighten zip ties around moving cables. Zip ties create localized pinch points. These pinch points inevitably sever the copper conductors. Always use rounded brackets designed specifically for dynamic motion.
Define realistic visual inspection routines for your maintenance staff. Mechanical checks identify surface wear incredibly early. You want to spot damage on the cover long before internal wires fail. Routine checks shift maintenance from reactive to proactive. Inspect the high-stress transition zones weekly. Look for discoloration, fraying, or deep scratches. Replace outer layers immediately upon spotting deep gouges. This preserves the expensive inner wiring indefinitely. Document every inspection carefully in your maintenance logs. Track which joints show the fastest wear rates over time. This data helps you optimize future routing designs effectively.
Compare cheap disposable sleeves against highly engineered dress pack solutions. Evaluate them based on projected operational cycle life. Factor in the required maintenance intervals deeply. A higher initial investment often yields vastly superior operational uptime. Cheap tubing breaks down after a few hundred thousand cycles. Premium covers easily survive several million cycles. Calculate the operational losses of replacing cheap covers multiple times. The premium option clearly wins when evaluating long-term durability and uptime guarantees.
You must eventually choose between off-the-shelf and custom options. Standardized modular covers offer significantly faster lead times. Standard replacements keep your inventory simple. They fit most common industrial applications perfectly. Custom-molded harnesses provide tighter spatial profiles. They fit perfectly around bespoke end-of-arm tooling. They do require higher initial setup costs. However, they eliminate all snagging risks in extremely tight work cells.
Take actionable verification steps before finalizing your purchase. Request physical material samples for your engineering team. Ask for specific testing documentation relevant to your cycle rates. Trial a new cover on a single troublesome cell first. Verify its actual performance before committing to a facility-wide rollout. Ask your vendor detailed questions about installation tolerances. If you need expert guidance on protecting your specific cells, contact us today. We can review your unique application requirements thoroughly.
A properly specified protection system shifts maintenance paradigms completely. It transforms reactive emergencies into predictable managed processes. Effective covers defend your internal conductors seamlessly. They ensure your automated cells run at peak efficiency constantly.
Evaluating your operational environment remains absolutely critical. Demanding transparent testing data protects your production schedules. Adhering to strict installation tolerances guarantees long-term automation success. Never treat dress packs as an afterthought. Treat them as primary mechanical assets to protect your facility.
A: Replacement frequency depends entirely on cycle rates and environmental hazards. Proactive replacement schedules should rely heavily on manufacturer cycle-life data. High-quality products often carry ratings for millions of flexes. You must conduct routine visual wear inspections regularly. Do not wait for a catastrophic failure. Replace the outer jacket when you observe deep abrasions.
A: Yes. Split-tube or zipper-style covers exist specifically for fast retrofitting. You can install them without disconnecting any existing lines. This saves massive amounts of downtime. However, you must re-evaluate the bend radius carefully. You also need to verify all new anchor points. Ensure the retrofitted system does not introduce new snagging hazards.
A: Internal failures usually happen due to severe over-filling. You likely violated the "less is more" routing rule. Inadequate strain relief also causes internal tearing. Poor anchoring allows cables to pull violently at their connectors. Internal friction occurs when cables cross over one another. You must separate them properly to prevent internal jacket grinding.
